Cross Beam Roll Forming Machine
Cross Beam Roll Forming Machine
Cross Beam Roll Forming Machine
  • Parameter
  • Component
  • Feature
  • Payment
  • Inquérito
All details could be customized.
Operating System
Liming operating system in both Chinese and English
Frame design
Type 1 Wall-plate-frame-design
Type 2 New-stand-frame-design
Main motor power
11KW with reducer
Driven
Chain and Gear
Max. Line speed of roll former
15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power
4KW
Electric Standard
380V /50HZ/3PH or as the customer's requirements
PLC
Siemens
Touch Screen
Siemens
Inverter
Schneider
Encoder
Omron
Accessory Option
1. Un-Coiler/De-Coiler
2. Hydraulic pre-shearing device
3. Stacker
4. CE certificate
Please contact with sales to get much more information.

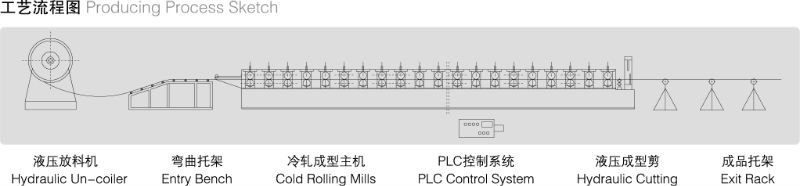

It’s composed by two machines, one for forming, the other to press two sheets together to be a cross beam.


Operating: Controlling carbinet with PLC and Touch Screen
Manufacture: Most Staff experienced more than 10 years
Control Hardware: Siemens
Electric Component: Schneider or same grade
Hydraulic Component: Some from China leading factories, and some from Germany
Service: Skilled engineers can fly to any country as required
Warranty: One year since leaving our factory if properly operated and maintained, electric elements excluded
Payment: 30% TT before production, 70% TT before shipping.
Packing: Load into container and fixed in container directly
Shipping: FCL by Sea
