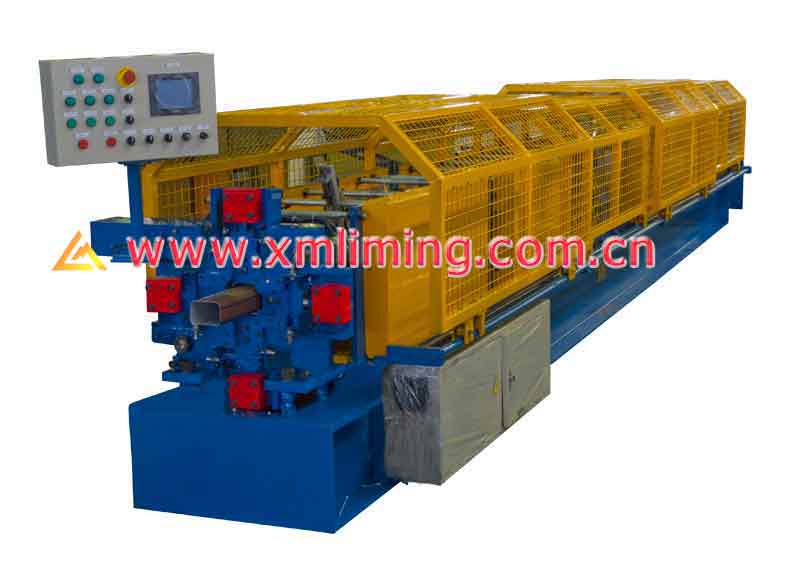

Rainspout Roll Forming Machine
Rainspout Roll Forming Machine
Rainspout Roll Forming Machine
Rainspout Roll Forming Machine
  • Parameter
  • Inquiry
All details could be customized.
Operating System
Liming operating system in both Chinese and English
Frame design
Type 1 Wall-plate-frame-design
Type 2 New-stand-frame-design
Manual Pre-shearing device
Un-powered, Smart cut control, to cut off the end of the final piece of sheet only
Main motor power
7.5KW , Frequency speed control
Driven
Chain and Gear
Max. Line speed of roll former
15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power
4KW
Electric Standard
380V /50HZ/3PH or as the customer's requirements
PLC
Siemens
Touch Screen
Siemens
Inverter
Schneider
Encoder
Omron
Accessory Option:
1. Un-Coiler/De-Coiler
2. Connecting base
3. Safety switches with interlock control
4. Stacker
5. CE certificate
Please contact with sales to get much more information.
